Phantym Azure

In stock

Dual Intel Xeon Gold 16 core processors, 192GB of RAM

Phantym Azure

Designed, configured, and tested for analysis, the PHANTYM AZURE is the spiritual successor to the popular and long running Forensic Analysis Workstation (FAW) of our Original Forensic Line. The AZURE features the latest generation of both server board and Intel Scalable Xeon processors as well as upgraded memory and drives. The guiding principle, however remains the same: the AZURE is built specifically for the rapid and reliable processing of very high volumes of digital evidence.


- Latest Intel Scalable Platform
- Dual Intel Xeon Gold 16-core processors
- 192GB of DDR4 2666 MHz Registered Memory
- Tableau T3iu (Upgradable to Tableau T356789iu)
- All Solid State Disk to ensure the best performance with digital forensic software.


Hassle-Free Forensics

In digital forensics, reliability is speed—not only is a forensic workstation required to quickly run demanding modern software analysis tools, but it must do so without failures of any kind. Time spent troubleshooting or recovering from system crashes is an unacceptable burden on already overloaded case logs.

The PHANTYM line has been designed to exactly meet this need by balancing affordability, reliability, and processing power. Performance is assured through the battery of testing and burn-in time that each system must undergo before leaving our facility. In addition to this individualized attention, each workstation configuration that we release or update first goes through a lengthy period of research and development to ensure full parts and software compatibility and to preclude any errors or inconsistencies with any component.

The PHANTYM line is the latest in a long series of purpose built FCI workstations—we concentrate on the hardware so that you can concentrate on your cases, making forensics truly hassle-free.

Fully Customizable

A host of suggested upgrades is available to allow you to tailor the PHANTYM AZURE to exactly meet your needs, with further customization also available upon request. Please do not hesitate to call or email with questions or other requests.

Three Year Warranty (All inclusive)

FREE, platinum level technical support is included for the LIFETIME of each of our systems, regardless of warranty status.

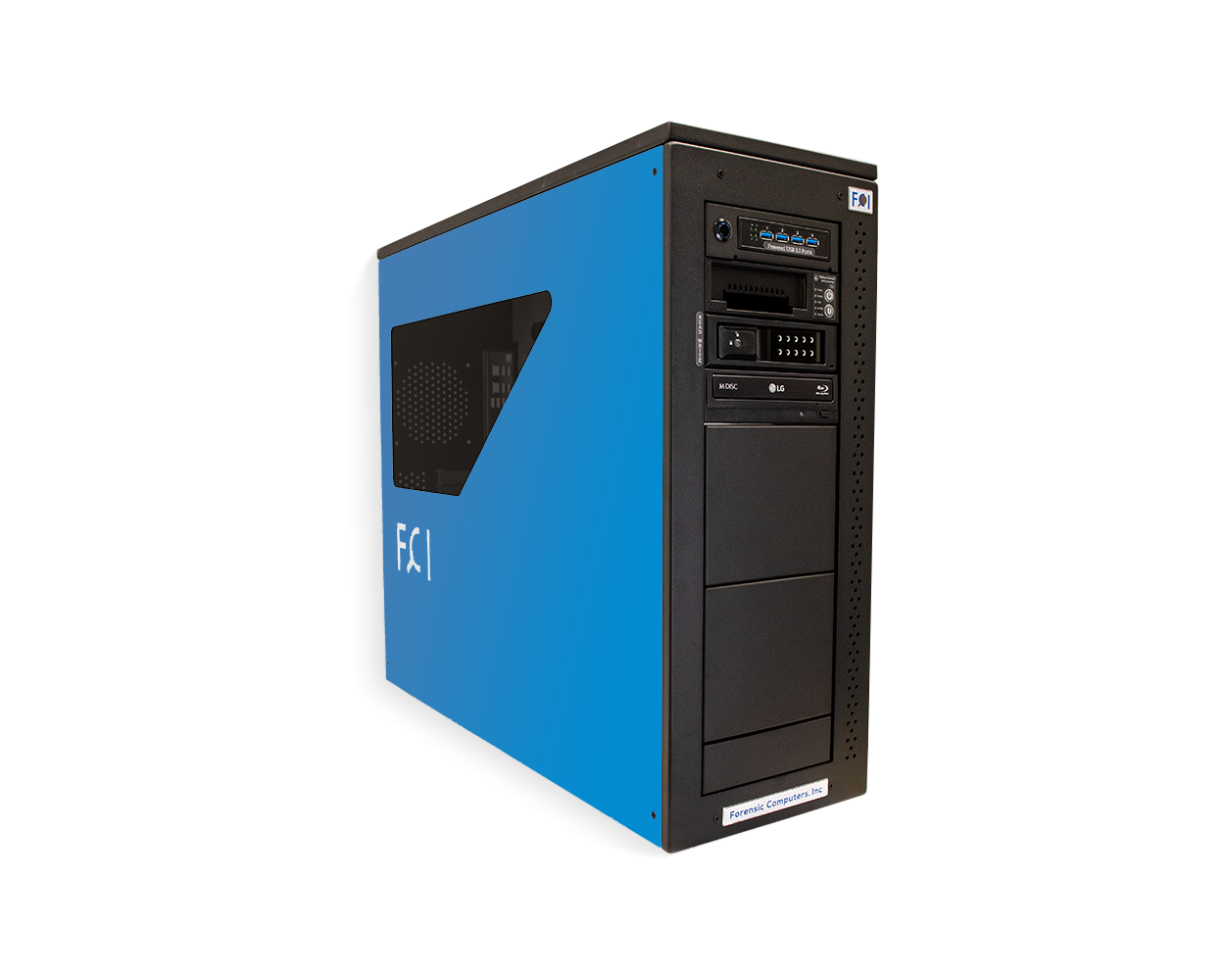

 Case: FCI Custom Case with Hub Access Lock Out

 Power Supply: 1300 Watt Modular

 Processors:Dual Intel Xeon Gold 6226R, 16-Core, 2.9GHz

 System Memory: 192GB DDR4 2666 Registered

 Integrated LAN: Dual Gigabit LAN Controller

 Video: 2GB DVI and HDMI

 External Drive Bay Configuration

 Bay 1: I/O Panel with 2x USB-C, 2x USB 3.0

 Bay 2: Tableau T3iu SATA Forensic Bridge

 Bay 3: BluRay Burner

 Bay 4: Trayless SATA Assembly

 OS Drive: 500GB SATA SSD

 Database Drive: 1TB NVME SSD


 Case Drive: 1TB NVME SSD

 Cache/Temp Storage : 1TB NVME SSD

 Archive/Backup Storage : 10TB SATA III Hard Drive, 7200RPM

 Monitor: Two 22" Wide Screen LED Monitors (with Speakers)

 Mechanical Keyboard and Mouse

 Operating System: Microsoft Windows 10 Pro 64-bit
